Stud welding is a process of joining a metal stud or fastener to a metal base or substrate by means of a controlled electric arc. The process involves using a special stud welding gun or machine that holds the stud in place against the base metal while a high current electrical discharge is passed through the stud and into the base material.

As the current flows through the stud and into the base metal, the metal at the interface between the two pieces of metal melts and fuses together. The weld is formed when the molten metal cools and solidifies, resulting in a strong, permanent bond between the stud and the base material.

Your Studwelding Equipment Supplier

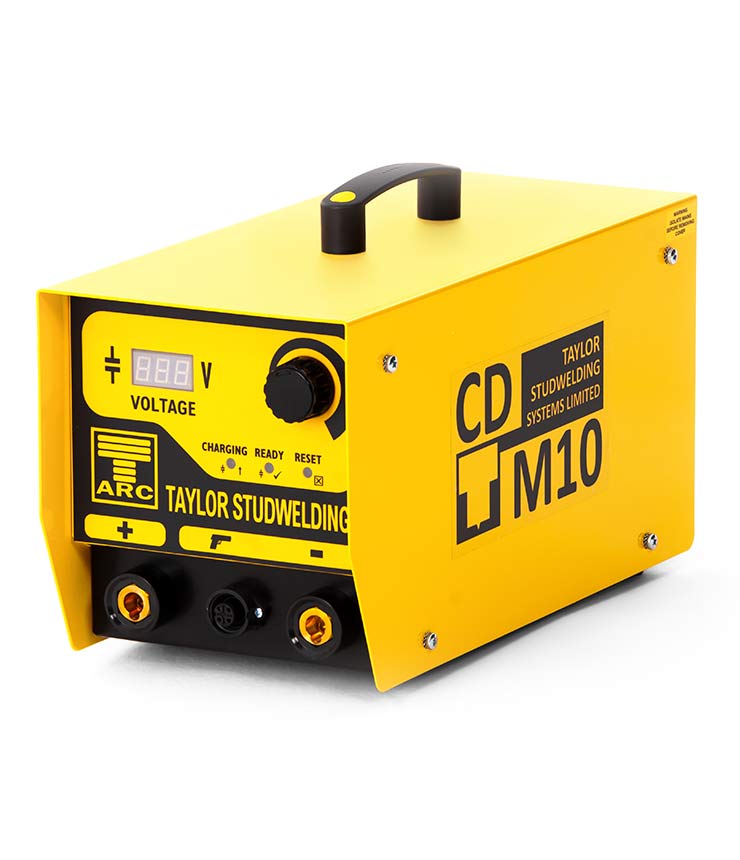

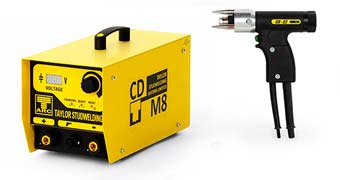

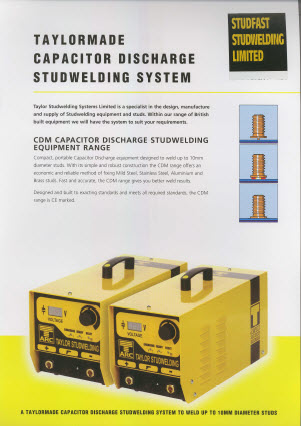

As a conscientious stud welding equipment supplier we are introducing the CDM8 Taylor Studwelding Equipment Offer. We have crafted an extremely low price point offer designed to get Great Britain manufacturing again during these difficult times, however this is a starter offer and we’ve had to limit it to one per company.

Studwelding Equipment Supplier

Which Weld Studs or Stud Welding Machine is right for Me?

Stud welding is commonly used in a variety of industries, including construction, automotive, and aerospace, to attach studs or fasteners to metal surfaces quickly and securely. It is a fast and efficient method of joining metal parts, and it produces high-quality welds with minimal distortion or heat affected zones.

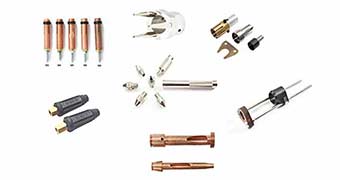

Here’s a top-level view of our family of Weld Stud Products, you can click on the text categories below do drill down if you know what area you’re interested in…

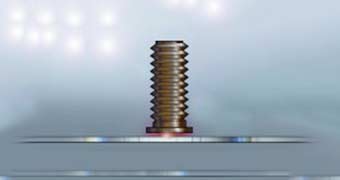

Stud welding is a unique welding process that uses CD Weld Studs and differs from other types of welding in several ways. Here are some of the key differences:

  1. Type of joint created by weld studs: Stud welding creates a mechanical joint between the stud and the base material, whereas other types of welding create a fusion joint where the base material and the filler metal are melted and fused together.
  2. Weld Stud Speed of Application: Stud welding is a relatively fast welding process, with welding times typically ranging from a fraction of a second to a few seconds. Other types of welding, such as TIG welding and MIG welding, can take longer to complete.
  3. Heat input: Stud welding requires relatively low heat input compared to other types of welding, which can help to minimise distortion and heat-affected zones in the base material.

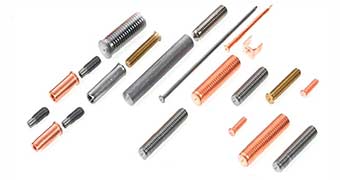

  4. Materials: Stud welding is typically used to join metals that are similar in composition and thickness, whereas other types of welding can be used to join dissimilar metals and materials, such as plastics and ceramics. Our most popular CD products are Stainless Steel Weld Studs, copper-flashed mild-steel Weld Studs where the thin layer of copper coating aids in mitigating the oxidisation inherent with mild steel and Aluminium Alloy Weld Studs, popular in applications where weight is a concert and in the signage industry. We also offer more exotic materials in our Capacitor Discharge consumables, like 316 Stainless Steel Weld Studs where salt-water corrosion is a concern and we have other materials too like Brass Weld Studs often favoured by engravers.

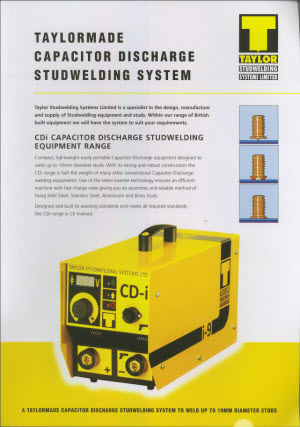

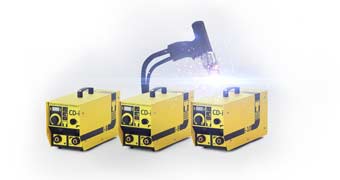

  5. Weld Stud Capacitor Discharge Equipment: Stud welding requires specialised equipment, the two main components being a stud welding gun (sometimes referred to as a ‘torch’ by our clientele hailing from a more traditional welding background) and the controller box. whereas other types of welding can be performed using more general welding equipment, such as a welding torch or a welding machine.

Stud welding is a specialised welding process that offers unique advantages for specific applications, such as fast and efficient joining of similar metals with minimal heat input and distortion. However, other types of welding may be more appropriate for different materials and applications.

The core of our business is centred on fixing weld studs, particularly using the comparatively fast and continually evolving CD StudWelding Process over and above the older methods like DA and SC that innovations in the CD process and improvements in the equipment and the weld studs themselves are gradually dovetailing into the larger diameters that used to be dominated by the Short Cycle and Drawn Arc Processes.

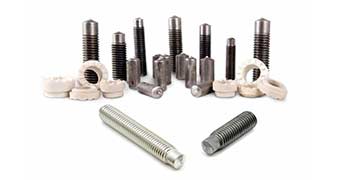

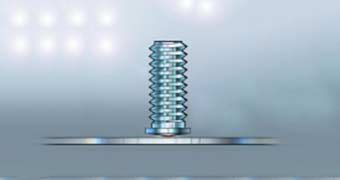

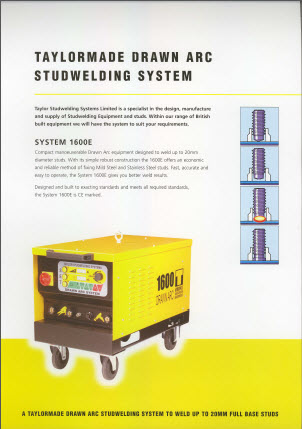

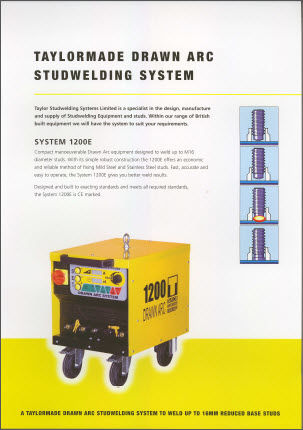

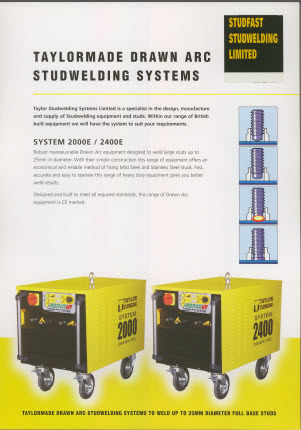

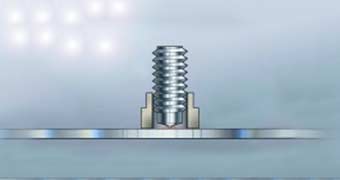

However we still recommend processes like Drawn Arc in instances where deeper penetration is required into the parent material. Factors like the formation process of the sheet metal you are using can also dictate that the longer weld times and more forgiving natures of processes like short cycle when it comes to purity of parent material, inconsistent layering associated with steel that is hot-rolled rather than cold-rolled and also when dealing with surfaces that exhibit scale or coating that it is impractical to remove before welding. So we still supply plenty of Drawn Arc and Short Cycle solutions to our Clients. Although CD continues to grow in terms of what is achievable, SC and DA will certainly still have a place for the foreseeable future.

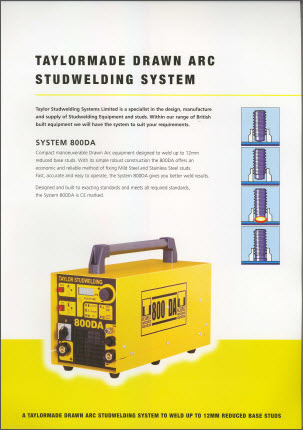

In terms of versatility and affordability our DA800 machine is definitely worth a look at if you are dealing with any of the situations described above.

Weld Stud Advantages and What industries would use the stud welding process?

Weld Studs and Stud welding is used in a wide range of industries for various applications, including:

  1. Welding in Construction: Stud welding is commonly used in the construction industry to attach metal studs to concrete or steel structures, such as in the construction of buildings, bridges, and tunnels.
  2. Automotive CD Studs: Stud welding is used in the automotive industry to attach metal parts, such as brackets, reinforcements, and subframes, to vehicle bodies and frames.
  3. Capacitor Discharge for Aerospace: Stud welding is used in the aerospace industry to attach metal components, such as brackets, frames, and electrical grounding points, to aircraft structures.
  4. Marine Weld Studs: Stud welding is used in the marine industry to attach metal components, such as supports, brackets, and fittings, to ship structures. 316 stainless steel weld studs are commonly used in favour of regular A2 stainless steel cd studs, due to the corrosion resistant properties of the 316 stainless steel weld stud material composition
  5. M3-M10 Weld Studs in Manufacturing: Stud welding is used in the manufacturing industry to attach metal components, such as brackets, supports, and fasteners, to various products, such as appliances, electronics, and machinery. While M4 weld studs and M5 threaded cd weld studs are the most popular diameters, we even offer threaded diameters as low as 2.5M and plain pins AKA unthreaded weld studs.

In general, weld studs are welded using CD stud welding equipment in applications where a strong, permanent, and reliable bond is required between metal components, and where a fast and efficient welding process is desired. The versatility of the stud welding process makes it suitable for use in many different industries and applications.

Why use weld studs and what are the benefits of stud welding?

Stud welding our weld studs to the job in order to attach or fix components in your application, offers several benefits over other types of more traditional welding and mechanical fastening methods. Here are some of the key benefits:

  1. Speed of welding M-threaded Studs: Stud welding is a fast welding process that can produce a high-quality weld in a matter of seconds. This makes it an efficient and time-saving option for many applications.
  2. Strength of Weld Studs post weld process: Stud welding creates a strong and permanent bond between the stud and the base material, resulting in a joint that can withstand high loads and stresses.
  3. Durability of the weld esp. critical applications: Stud welding creates a hermetic seal between the stud and the base material, which can help to prevent corrosion, leaks, and other forms of damage over time.
  4. Aesthetics: Stud welding a weld stud, creates a clean and uniform appearance, as there are no visible weld beads or fasteners on the surface of the base material.
  5. Versatility of Studwelding: The Stud-welding process can be used to join a wide range of metals, including steel, stainless steel, aluminium, and brass, as well as to attach various types of fasteners, such as threaded studs, unthreaded studs, and pins.
  6. Minimal distortion post weld: Stud welding requires relatively low heat input, which can help to minimise distortion and heat-affected zones in the base material.

In summary, stud welding is a versatile and efficient welding process that offers many benefits over other types of welding and mechanical fastening methods, including speed, strength, durability, aesthetics, and minimal distortion. It is a popular choice for a wide range of applications across multiple industries.

Weld stud short-comings and when not to use stud welding?

While stud welding is a versatile and efficient welding process, there are certain situations where it may not be the best option. Here are some cases when clients have asked us if stud welding may be suitable in their application and we have had to advise alternative fixing and fastening methods;

Our Client’s Question Our Expert Answer
Can I use CD Welding on very, very thin materials? Stud welding may not be suitable for very thin materials, as the heat input from the process can cause distortion or warping. M3 Weld Studs or M4 CD Weld Studs can reduce these negative effects because with smaller diameter studs there is less material to liquify in the weld process and the heat of the weld is quickly conducted away by the parent material of the job. However there comes a point at which there just isn’t enough depth to the parent material to conduct away the heat of the weld resulting in the necessary weld power for producing a weld of sufficient strength also blowing a hole in the parent material or warping the surface beyond acceptable limits. That said, of the weld processes available, CD is a front runner for welding thin materials.
Can I use The Capacitor Discharge Process (Welding CD Studs) with Non-metallic materials? Stud welding is designed for use with metal materials, and is not suitable for bonding non-metallic materials such as plastics or ceramics. The CD Process is an earth-return process. As such it requires that the job you are welding to is able to be earthed back to the welding controller (usually via. the use of earthing clamps.) As materials like wood, plastic or ceramic are unable to carry sufficient electrical charge, (they are classed as electrical insulators, not conductors of electrical current,) the earth-return circuit is unable to form with the point of the weld (specifically the pip,) being the only point of resistance and therefore the focal point for the energy of the weld.
Are CD Weld Studs suitable for use in Corrosive environments? While stud welding creates a strong and durable bond, it may not be suitable for applications where the joint will be exposed to highly corrosive environments or chemicals.

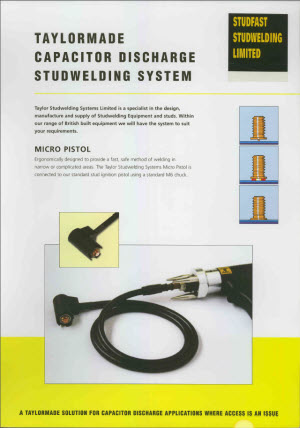

Can I use CD Welding in Tight spaces? Stud welding requires access to both sides of the base material, which may make it difficult to use in tight spaces or hard-to-reach areas.

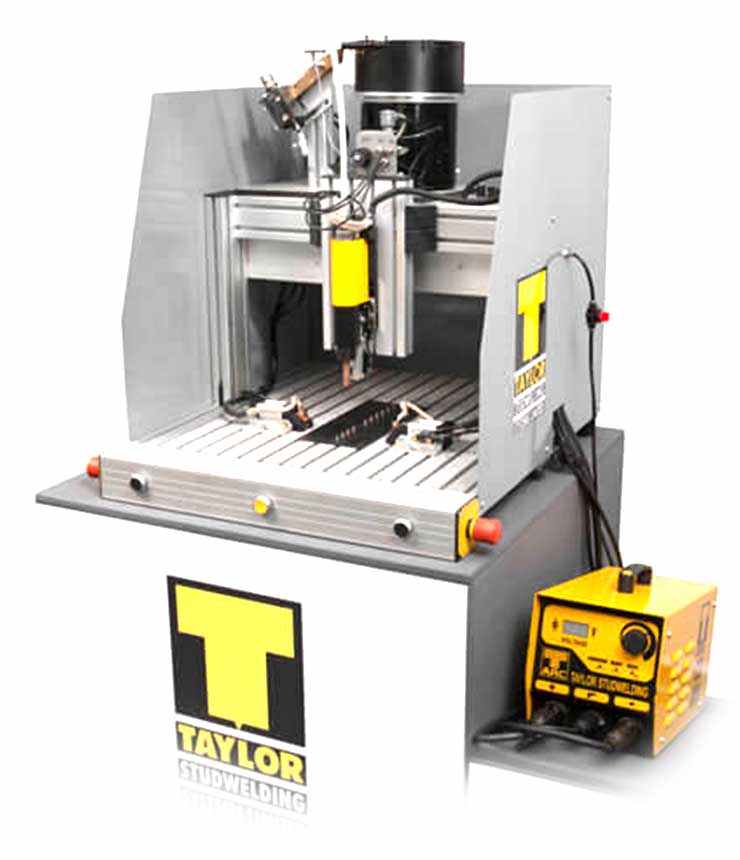

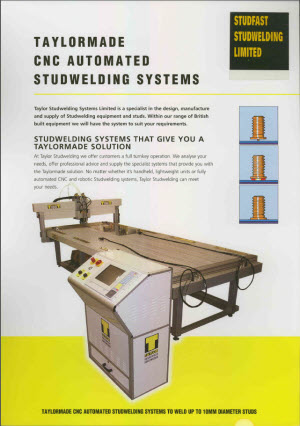

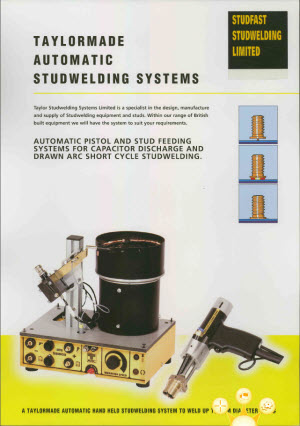

Do weld studs welded in the CD Process offer High precision? While stud welding can be very precise, especially in systems we design that employ computer controlled operation of automated CD weld heads on a CNC bed, even so, the few microns of accuracy we can whittle these systems down to in our bench tests still may not be suitable for applications that require extremely high precision, such as micro-welding. As we continuously improve the design of our CNC and Automated systems this accuracy is increasing all the time. Check out our weld-clinic videos for more detailed information about the cutting edge of weld accuracy.

Which Of Our Products is Right for You?

While stud welding is a highly versatile and efficient welding process, it may not be suitable for every situation. Factors such as material type, joint geometry, and environmental conditions should be considered when determining whether or not stud welding is the best option for a particular application.
