Automatic Pistol and Stud Feeding Systems

Automatic Pistol and Stud Feeding Systems

Compact, lightweight portable machine (16kg). Strong, robust construction. Size: 410 x 205 x 203mm. Super fast recharge time improves profitability. Easy adjustment of capacitor voltage. Welds up to 50 studs/minute


Date: June 10, 2020
Category: Equipment
Method: Capacitor Discharge
Share:


DRAWN ARC SHORT CYCLE SYSTEM 751 CONTROLLER FEATURES

Strong robust construction. Infinitely adjustable time. Constant 750 amp weld current. Size: 325 x 265 x 480mm. Weight: 52kg Available with gas kit as standard. Welds up to 8mm diameter Short Cycle studs.

AUTOMATIC PISTOLS TYPE AP1 AND AP2 FEATURES

Robust and ergonomically designed. Designed for lightness and balance. Only weighs 1 4kg plus cables. Size: 262 x 145 x 42mm. Welding range M3 to M8 as standard, other diameters possible. Welding lengths 6mm to 35mm as standard, other lengths possible. Material - Mild Steel, Stainless Steel, Brass and Aluminium. Type AP1 for Capacitor Discharge contact welding. Type AP2 for Capacitor Discharge lift gap and Drawn Arc Short Cycle welding.

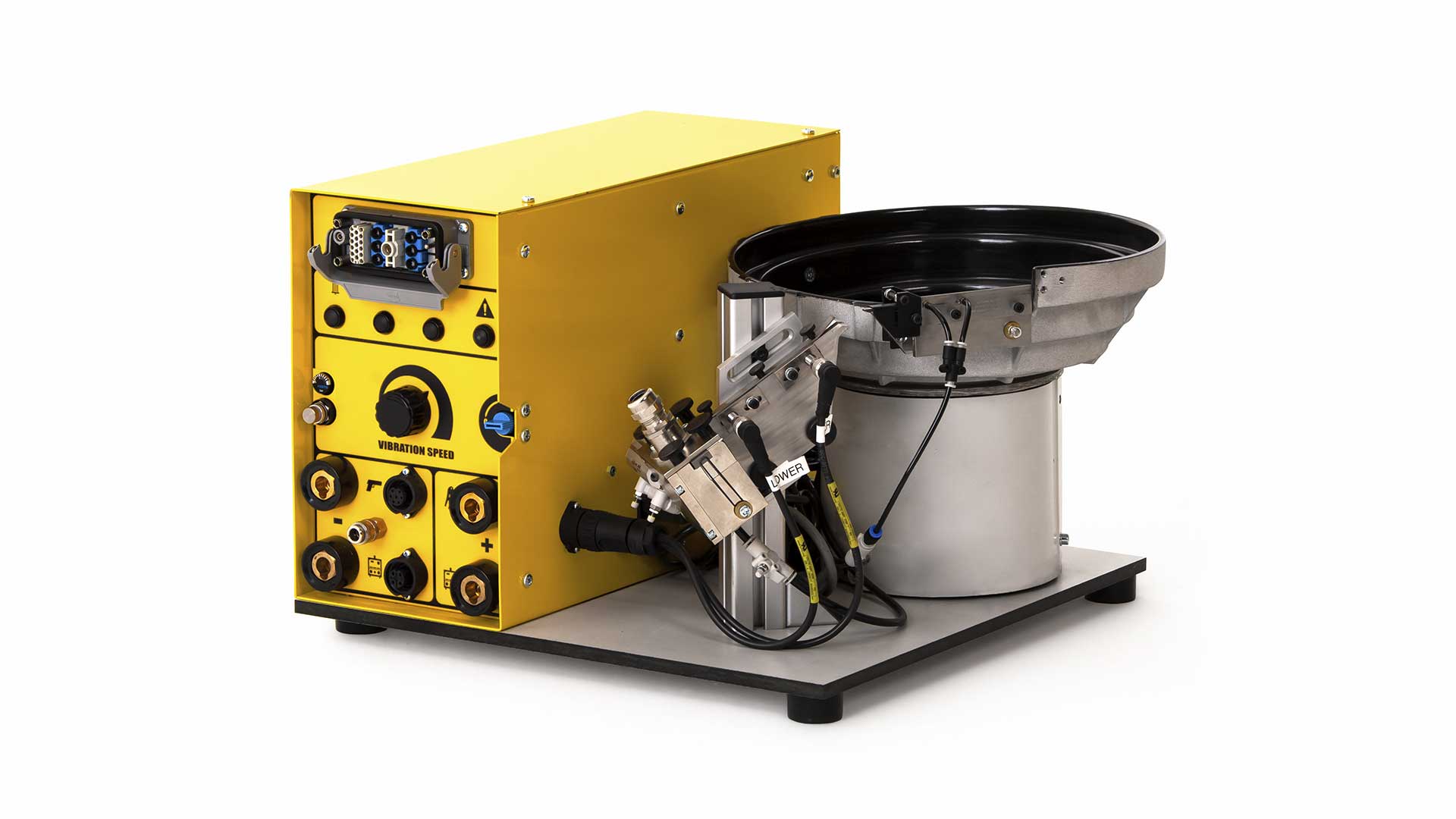

UNIVERSAL STUD FEEDER UNIT

Designed to automatically feed studs into the automatic pistol. Easily adjustable for different sizes of stud. Operating range - M3 to M8 as standard Other diameters possible. Operating stud length - 6mm to 35mm as standard, other lengths possible. Speed - up to 40 studs/minute. Size: 380 x 280 x 410mm. Weight: 38kg
